An outdoor observatory pavilion design as an addition to the side of a 4-story building. All designs were done through hand drafting or modelling.
First concept model of observatory, created from ropes cast in tension from hanging, then attached, set in concrete and inverted.

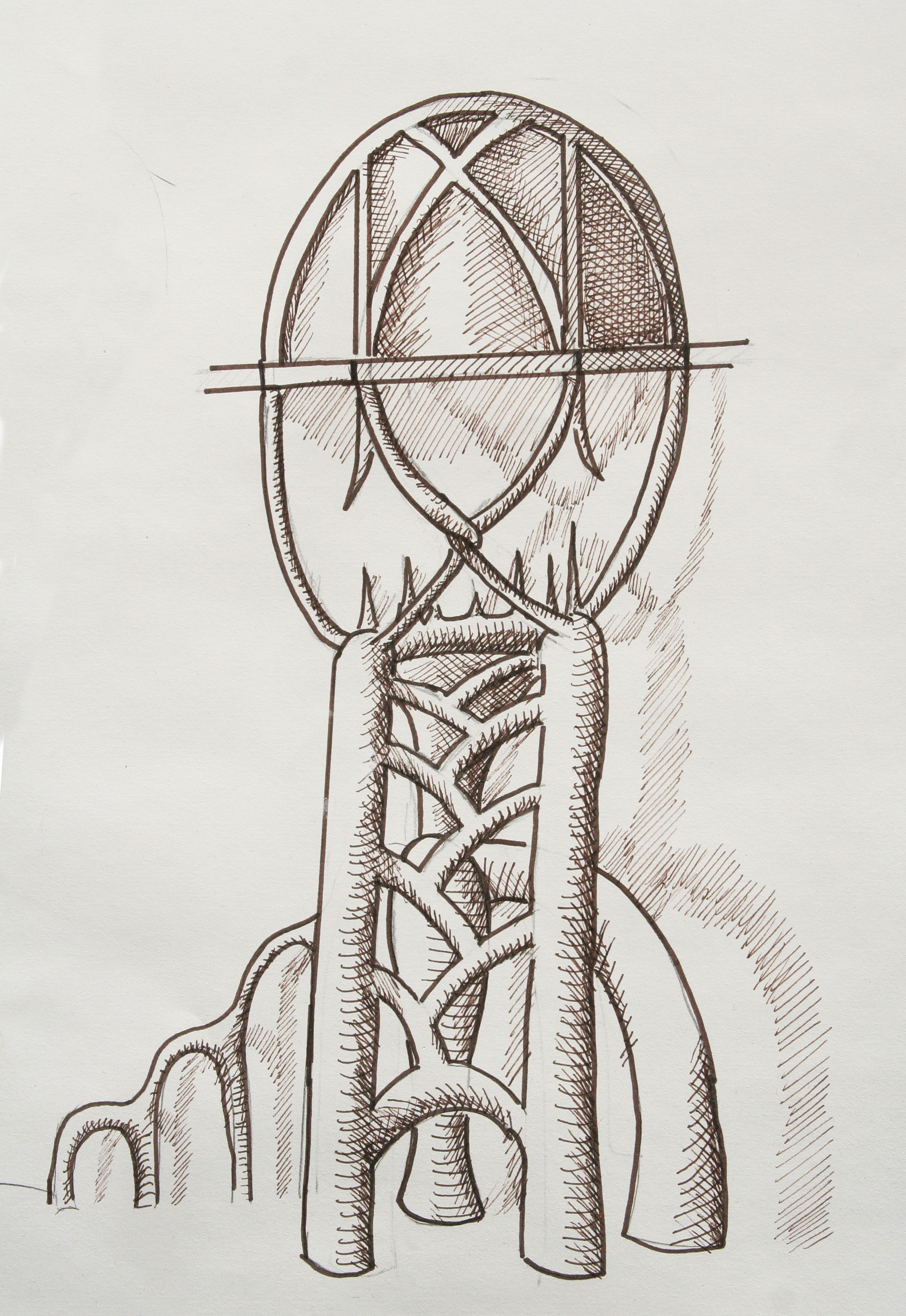

Second iteration of design. simplified and less chaotic, with a focus on climbing.
Side view of second iteration. note the dome addition on top, which was planned to connect to the building and be accessible from the interior.
Concept model of observatory, created with braided yarn, string and plaster. The materials planned for actual construction would be braided steel and concrete.
Final design of the observatory. Dome converts to outdoor seating area with periscope to view above the nearby buildings

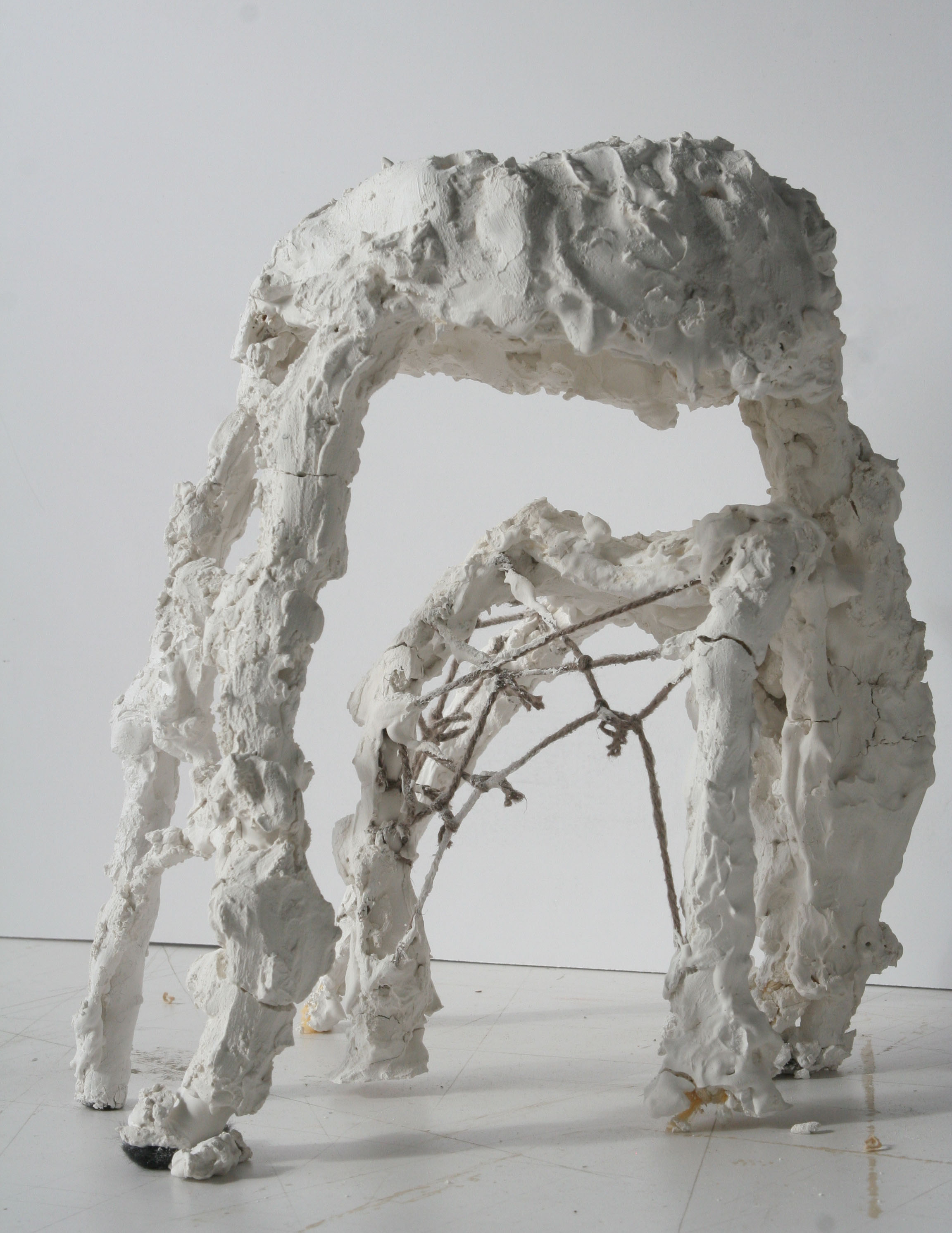

Side view of the concept model.
